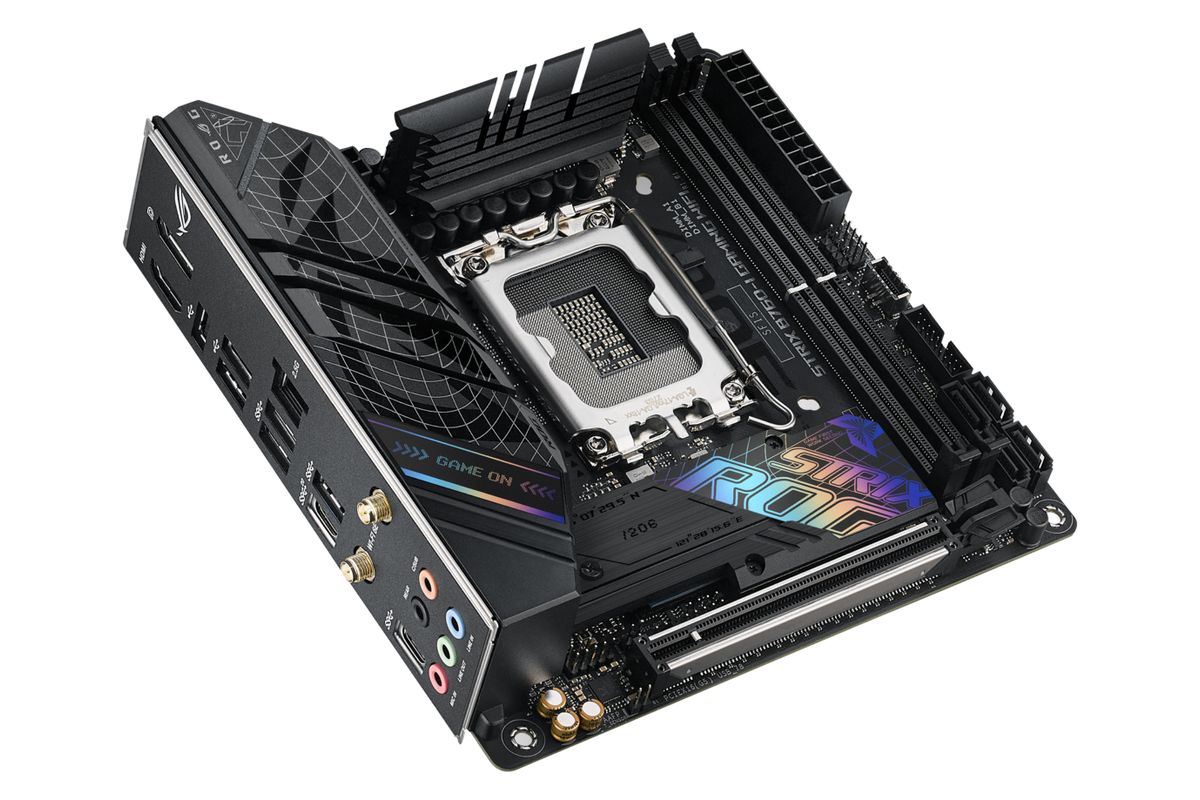

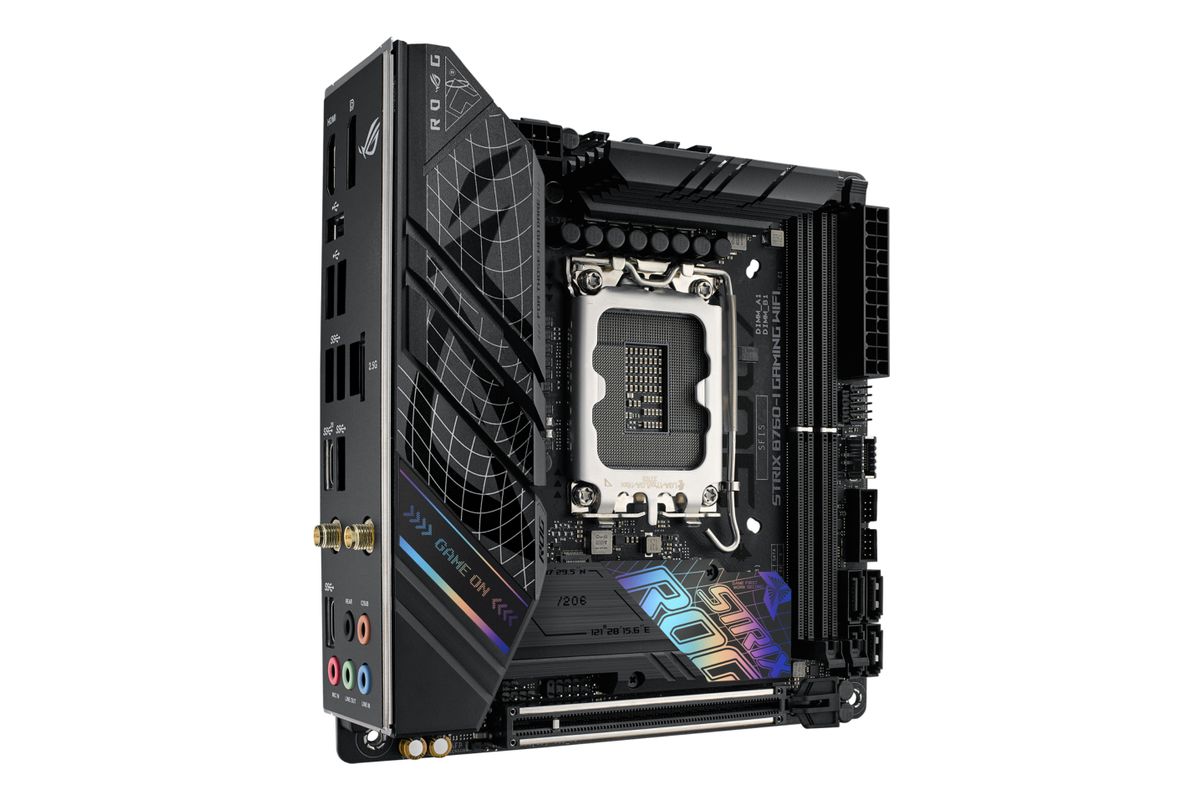

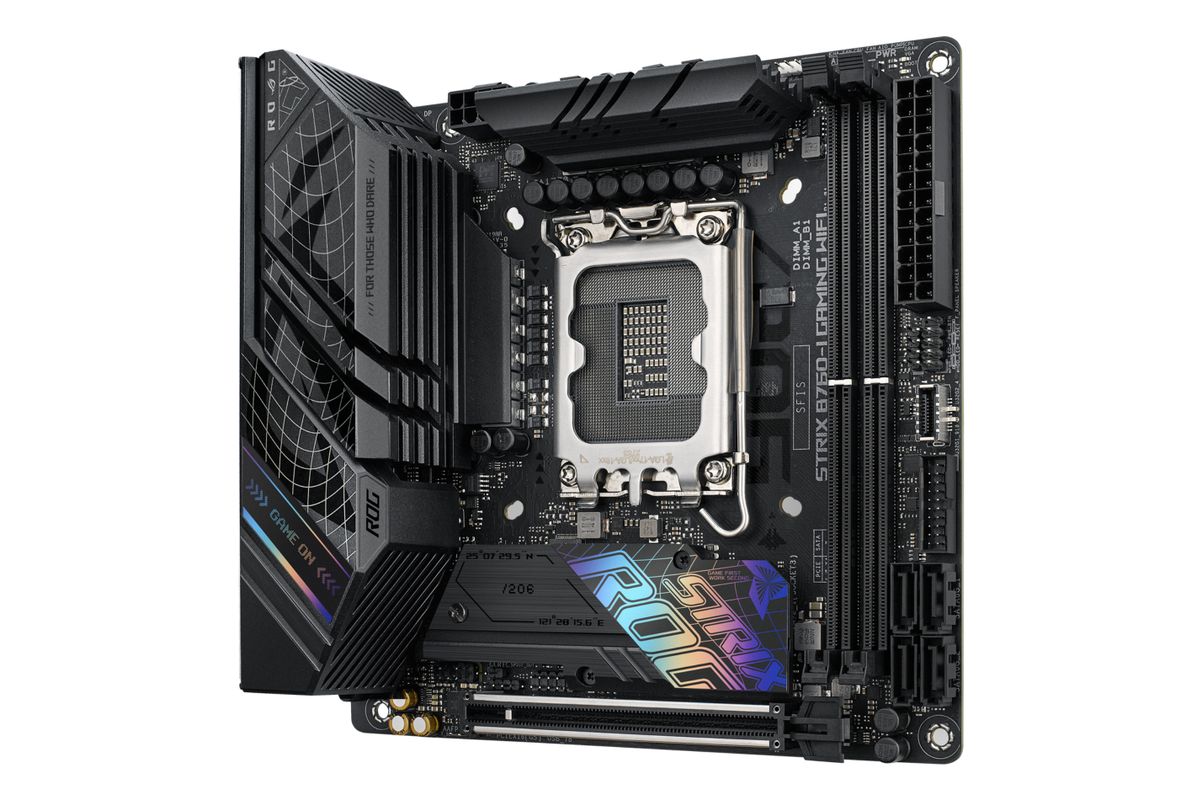

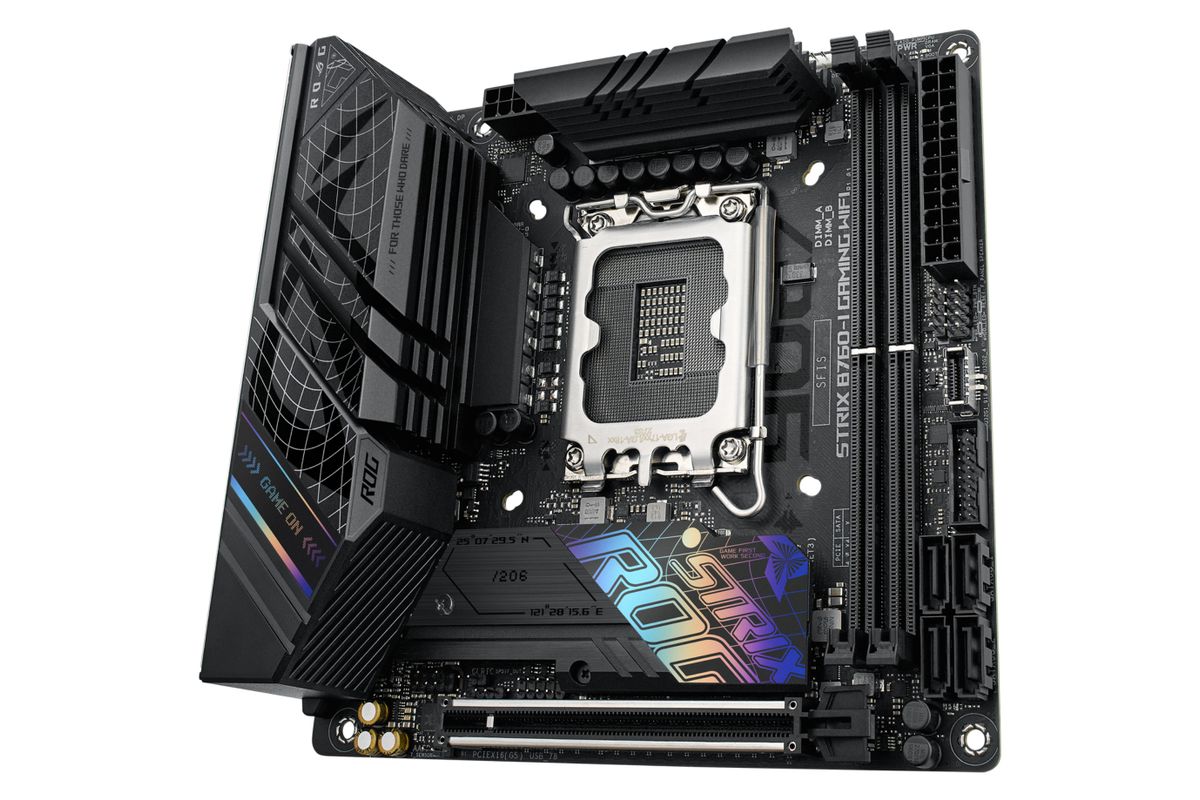

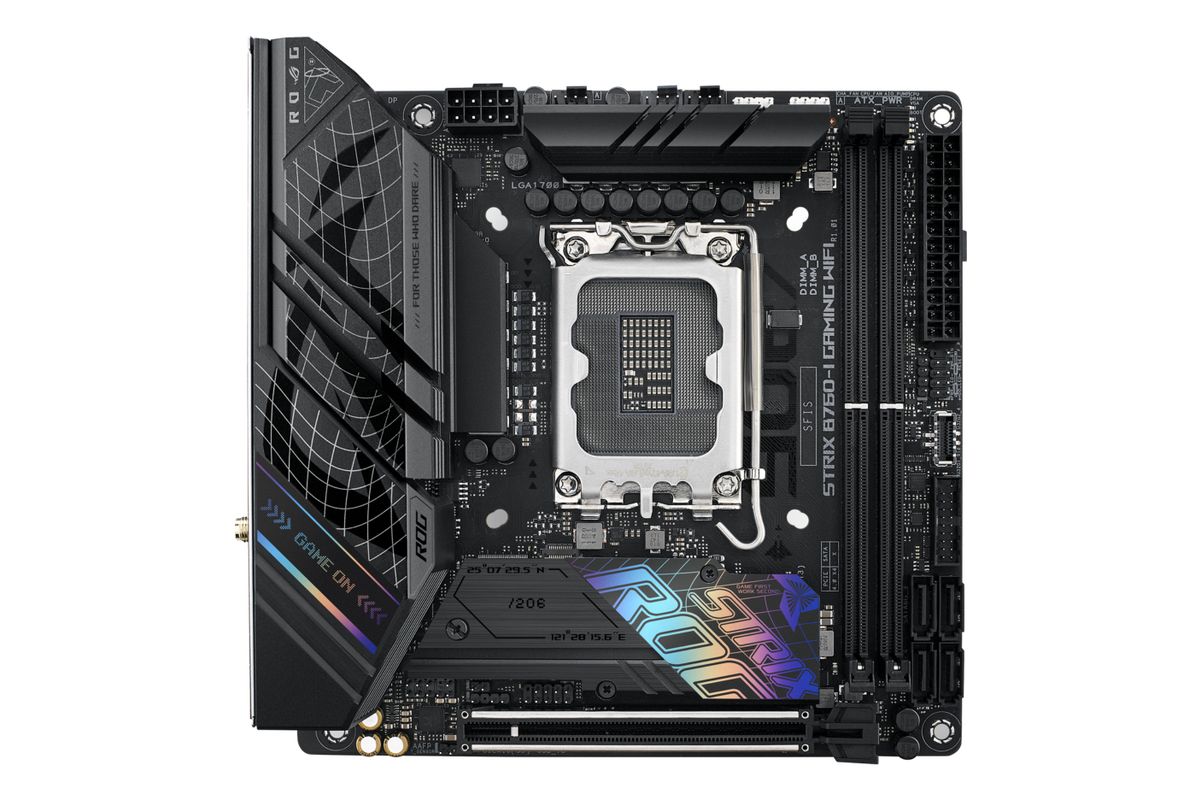

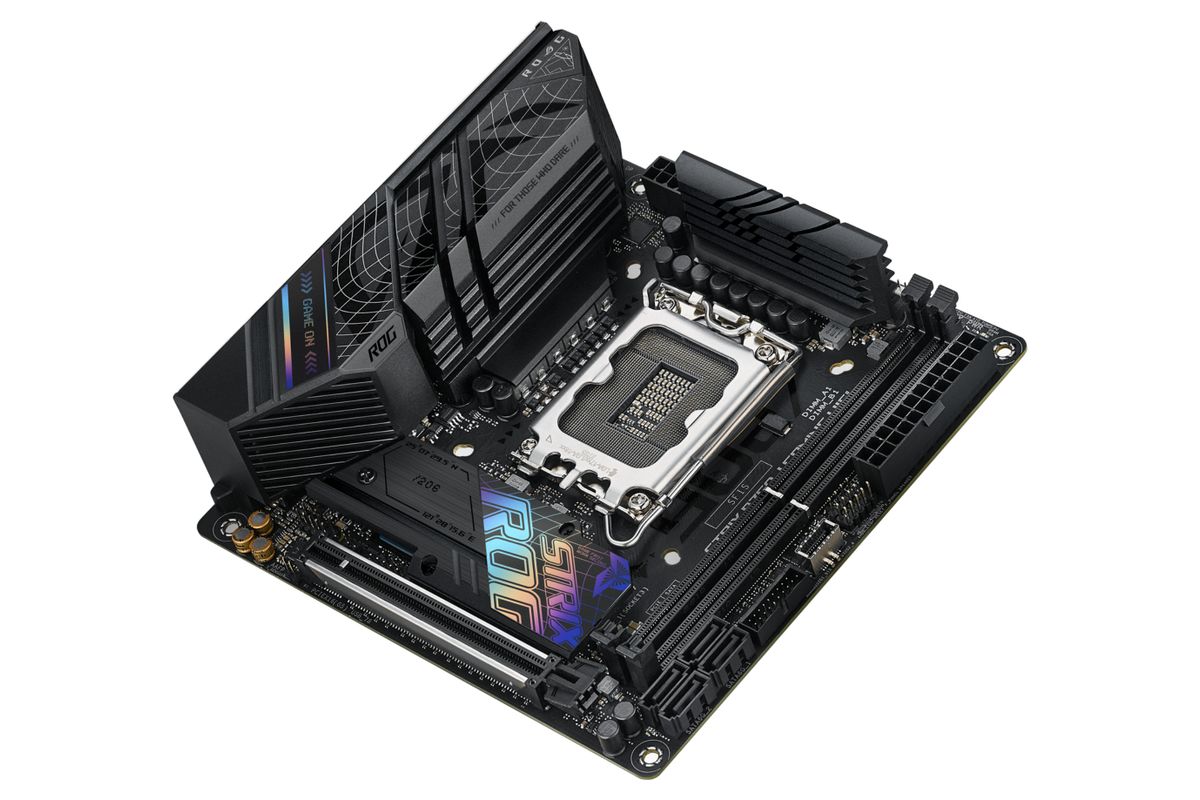

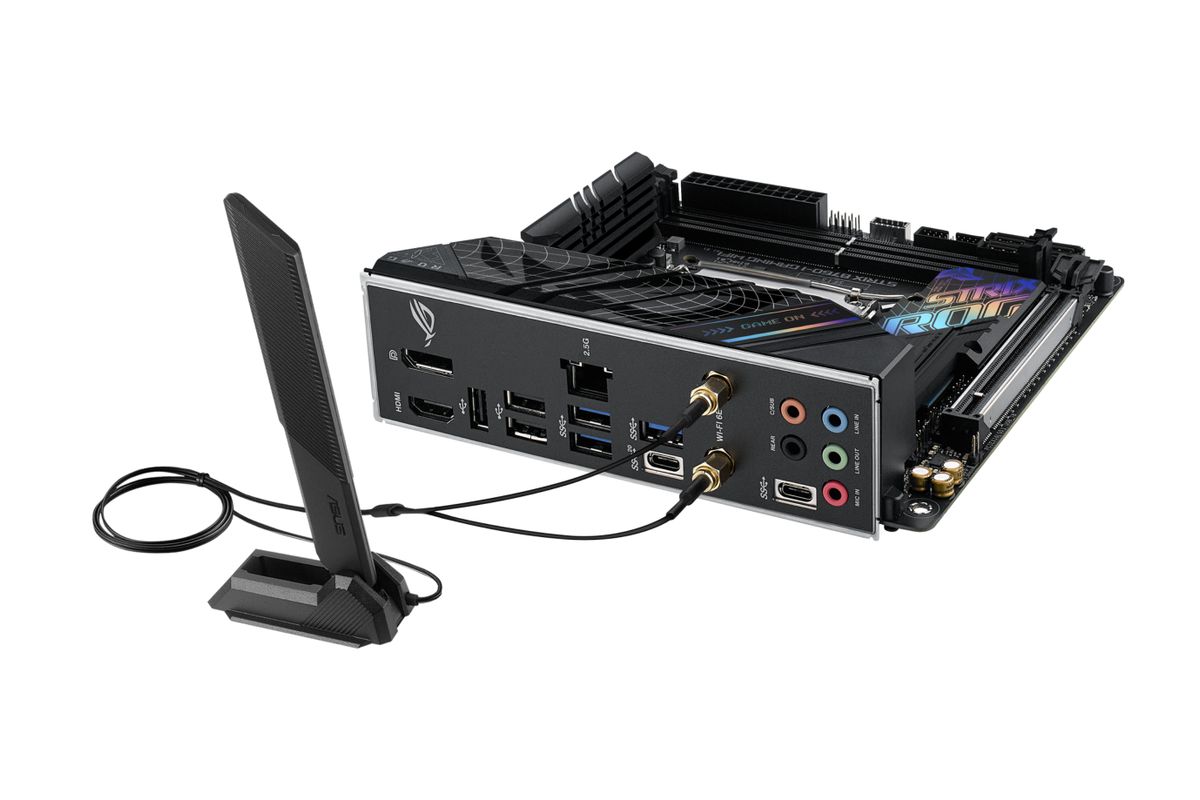

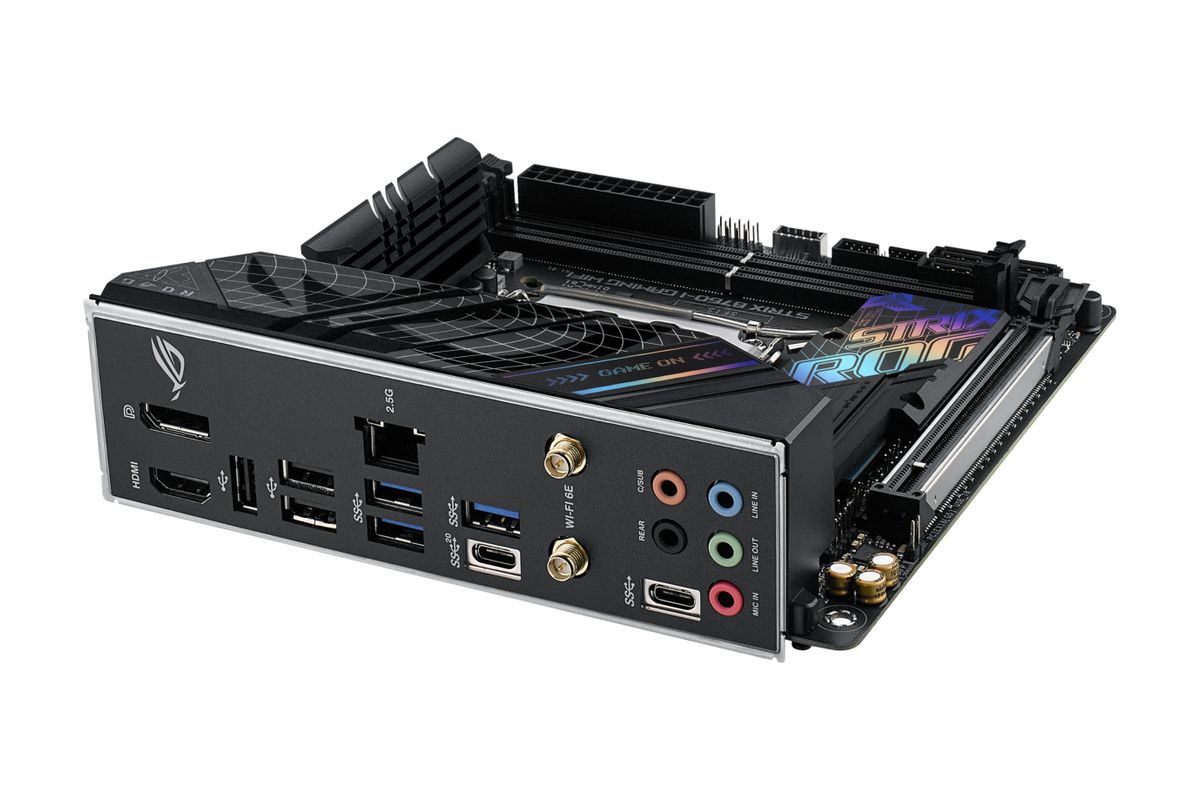

ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX
Beschikbaar
Artikel-Nr
419929
Fabrikant
ASUS
Artikelnr. van de fabrikant
90MB1D90-M1EAY0
EAN-code
4711081997658
Categorie
WEEE-Nr.
38765828
Buitenafmetingen (B x D x H)
190mm x 230mm x 10mm [Zelfmeting]
Gewicht
1.188kg [Zelfmeting incl. verpakking & inserts]
Verpakking
1 Aantal | 6 Aantal
Minimum bestelhoeveelheid (project)
50 Aantal
€ 239,00

ASUS ROG STRIX B760-I GAMING WIFI. Processorfabrikant: Intel, Processor socket: LGA 1700, Compatibele processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 96 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 6E (802.11ax), Wi-Fi-standaarden: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component voor: PC, Moederbord form factor: mini ITX, Moederbord chipset familie: Intel


Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
PC mini ITX Intel B760 SupremeFX S1220A 7.1 kanalen
DDR5-SDRAM 2 DIMM Maximum intern geheugen: 96 GB
HDD & SSD M.2, SATA III RAID support Aantal storage drives ondersteund: 6
BIOS type: UEFI AMI 128 Mbit
2.5 Gigabit Ethernet Wifi Wi-Fi 6E (802.11ax) Bluetooth 5.3

Processor
Processor socket
LGA 1700
Max. aantal SMP-processoren
1
Compatibele processors
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processorfabrikant
Intel

Geheugen
Ondersteunde geheugen types
DDR5-SDRAM
Supported memory clock speeds
7466,4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
ECC-compatibiliteit
Niet-ECC
Geheugen slots type
DIMM
Maximum intern geheugen
96 GB
Aantal geheugenslots
2
Ondersteunde geheugenkloksnelheid (max)
7600 MHz
Niet gebufferd geheugen
Ja
Geheugen kanaal
Dubbelkanaals

Opslag-controllers
Ondersteunde opslagstationinterfaces
M.2, SATA III
Aantal storage drives ondersteund
6
RAID support
Ja
Maximum aantal HDD's per behuizing
4
Soorten RAID
0, 1, 5, 10
Ondersteunde types opslag-drives
HDD & SSD

Grafisch
Ingebouwde grafische adapter
Nee
Ondersteuning voor parallel processing
Niet ondersteund

Interne aansluitingen
Aantal SATA-aansluitingen
0
Aantal SATA III connectors
4
Aantal SATA II connectors
0
12V vermogen-connector
Ja
S/PDIF uitgang
Ja
EPS power connector (8-pin)
Ja
ATX Power connector (24-pin)
Ja
USB 3.2-connectoren (3.1 Gen 2)
1
Aansluitingen voor behuizingsventilatoren
1
RGB LED-aansluitrail
Ja
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen
1
Aansluiting voor CPU koeler
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
USB 2.0 aansluitingen
1

Aansluitingen achterzijde
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
3
Aantal Ethernet LAN (RJ-45)-poorten
1
Lijningang
Ja
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
0
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
VGA (D-Sub)poort(en)
0
Aantal HDMI-poorten
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
0
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal USB 2.0-poorten
3
Aantal DisplayPorts
1
DVI-D poorten
0

Netwerk
Wifi
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Ja
Ethernet LAN
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Bluetooth-versie
5.3
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Kenmerken
Audiochip
SupremeFX S1220A
Chipset moederbord
Intel B760
Component voor
PC
Moederbord form factor
mini ITX
Audio-uitgangskanalen
7.1 kanalen
Moederbord chipset familie
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11 x64
Kleur van het product
Zwart

Uitbreidingsmodules
Aantal M.2 (M) slots
2
PCI Express x16 (Gen 5.x) sleuven
1

BIOS
Grootte BIOS-geheugen
128 Mbit
BIOS type
UEFI AMI

Gewicht en omvang
Diepte
170 mm
Breedte
170 mm

Overige specificaties
mSATA ports hoeveelheid
0
